| Art No. | D | A | B | B1 | C | D1 | E | F |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| S.SH27-05 | 5 | 35 | 17 | 8 | 11 | 3 | 3 | 6.5 |
| S.SH27-06 | 6 | 41 | 17 | 10 | 15 | 3 | 3 | 7.5 |
| S.SH27-08 | 8 | 42 | 24 | 12 | 18.5 | 3 | 4 | 8 |

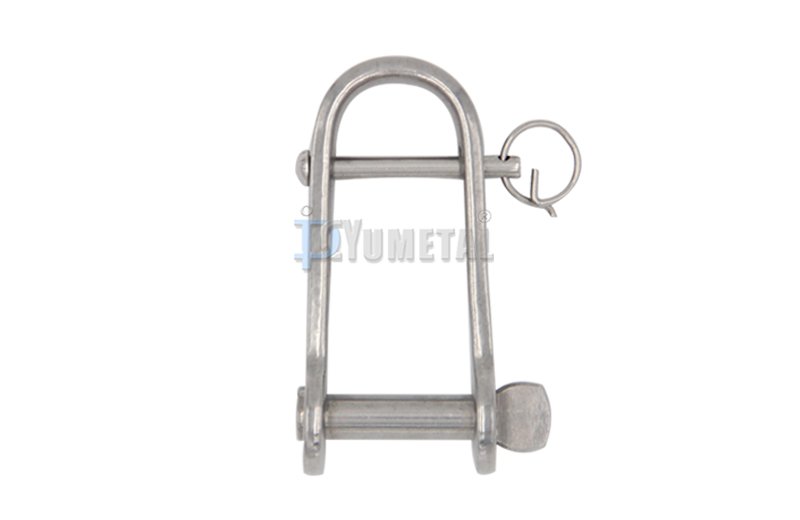

Stainless Steel AISI316 or AISI304
| Art No. | D | A | B | B1 | C | D1 | E | F |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| S.SH27-05 | 5 | 35 | 17 | 8 | 11 | 3 | 3 | 6.5 |
| S.SH27-06 | 6 | 41 | 17 | 10 | 15 | 3 | 3 | 7.5 |
| S.SH27-08 | 8 | 42 | 24 | 12 | 18.5 | 3 | 4 | 8 |
