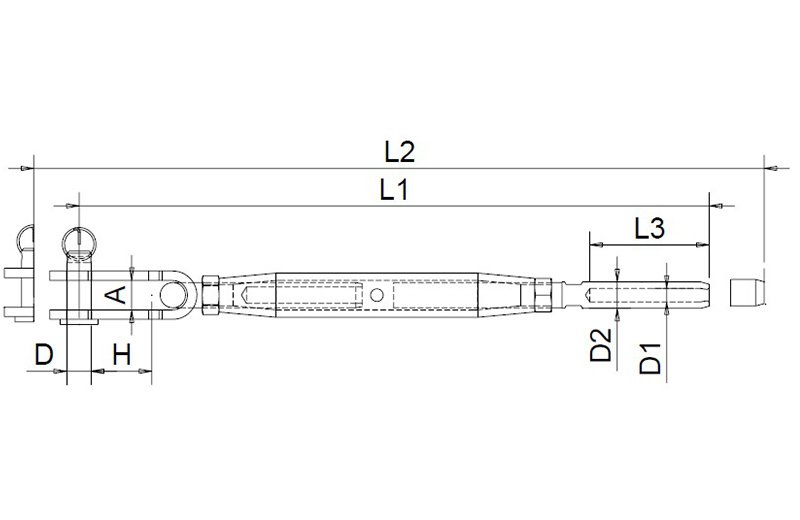

| Art No. | SIZE | WIRE | A | D | H | D1 | D2 | L1 | L2 | L3 | BL | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS08-0603 | M6 | 3 | 7 | 6 | 15 | 3.3 | 6.35 | 180 | 250 | 39 | 1.25 | 0.085 |
| S.RS08-0604 | M6 | 4 | 7 | 6 | 15 | 4.3 | 7.5 | 190 | 260 | 45 | 1.25 | 0.090 |
| S.RS08-0804 | M8 | 4 | 10 | 8 | 20 | 4.3 | 7.5 | 210 | 285 | 45 | 2.35 | 0.160 |
| S.RS08-0805 | M8 | 5 | 10 | 8 | 20 | 5.3 | 9 | 215 | 290 | 52 | 2.35 | 0.165 |
| S.RS08-1005 | M10 | 5 | 12 | 9 | 25 | 5.3 | 9 | 250 | 340 | 52 | 3.50 | 0.310 |
| S.RS08-1006 | M10 | 6 | 12 | 9 | 25 | 6.4 | 12.6 | 265 | 355 | 64 | 3.50 | 0.350 |
| S.RS08-1206 | M12 | 6 | 13 | 12 | 30 | 6.4 | 12.6 | 300 | 410 | 64 | 5.10 | 0.540 |
| S.RS08-1208 | M12 | 8 | 13 | 12 | 30 | 8.4 | 16 | 320 | 430 | 80 | 5.10 | 0.600 |
| S.RS08-1608 | M16 | 8 | 17 | 16 | 40 | 8.4 | 16 | 390 | 530 | 80 | 8.00 | 1.080 |
| S.RS08-1610 | M16 | 10 | 17 | 16 | 40 | 10.5 | 18 | 400 | 540 | 90 | 8.00 | 1.110 |
| S.RS08-2010 | M20 | 10 | 20 | 19 | 45 | 10.5 | 18 | 450 | 590 | 90 | 13.00 | 1.720 |
| S.RS08-2012 | M20 | 12 | 20 | 19 | 45 | 12.6 | 20 | 465 | 605 | 105 | 13.00 | 1.800 |
