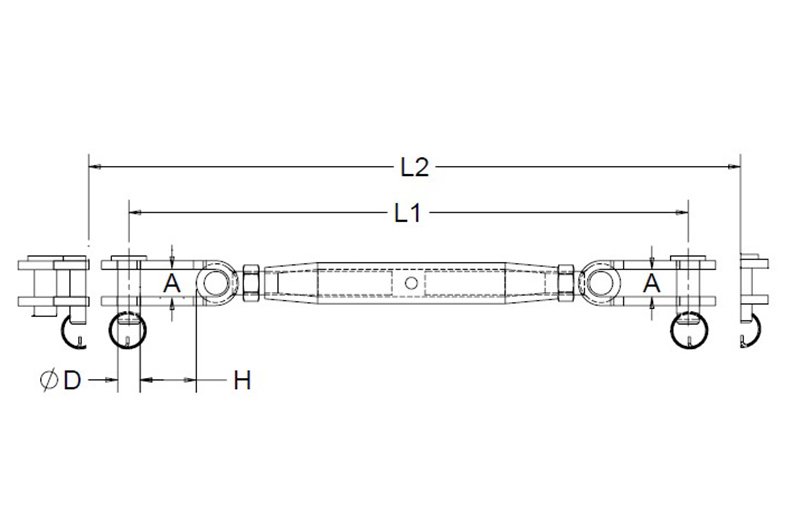

Art No. | SIZE | A | D | H | L1 | L2 | BL | Weight |
mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS09-06 | M6 | 8 | 6 | 13 | 195 | 265 | 1.25 | 0.10 |
S.RS09-08 | M8 | 10 | 8 | 16 | 245 | 315 | 2.35 | 0.18 |
S.RS09-10 | M10 | 12 | 9 | 20 | 290 | 350 | 3.50 | 0.38 |
S.RS09-12 | M12 | 18 | 12 | 25 | 350 | 455 | 5.10 | 0.63 |
S.RS09-16 | M16 | 20 | 16 | 29 | 455 | 585 | 8.00 | 1.37 |
S.RS09-20 | M20 | 24 | 19 | 30 | 515 | 665 | 13.00 | 2.23 |
S.RS09-22 | M22 | 26 | 22 | 35 | 605 | 785 | 17.00 | 4.52 |
S.RS09-24 | M24 | 29 | 25 | 40 | 715 | 945 | 20.00 | 6.62 |
S.RS09-27 | M27 | 34 | 28 | 46 | 790 | 1025 | 25.50 | 7.51 |
S.RS09-30 | M30 | 40 | 32 | 54 | 875 | 1135 | 31.00 | 9.48 |
S.RS09-36 | M36 | 44 | 36 | 62 | 960 | 1230 | 43.00 | 13.66 |
