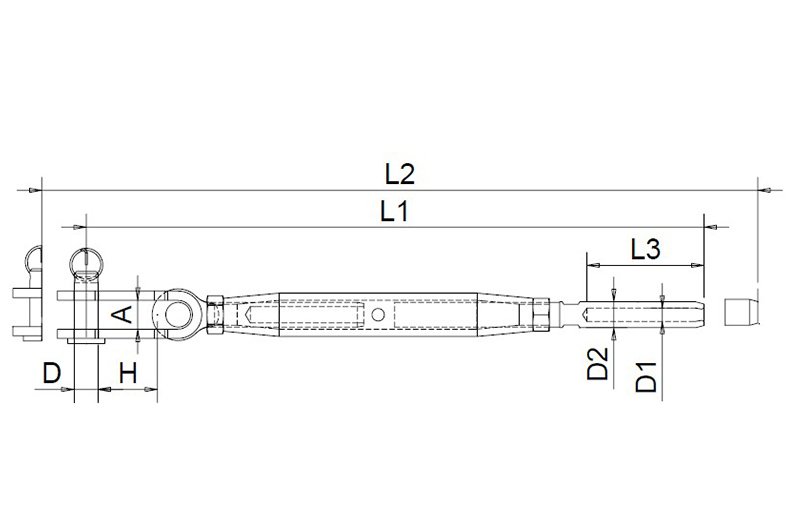

Art No. | SIZE | WIRE | A | D | H | D1 | D2 | L1 | L2 | L3 | BL | Weight |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS10-0603 | M6 | 3 | 8 | 6 | 13 | 3.3 | 6.35 | 200 | 270 | 39 | 1.25 | 0.085 |
S.RS10-0604 | M6 | 4 | 8 | 6 | 13 | 4.3 | 7.5 | 210 | 280 | 45 | 1.25 | 0.09 |
S.RS10-0804 | M8 | 4 | 10 | 8 | 16 | 4.3 | 7.5 | 240 | 310 | 45 | 2.35 | 0.16 |
S.RS10-0805 | M8 | 5 | 10 | 8 | 16 | 5.3 | 9 | 250 | 320 | 52 | 2.35 | 0.165 |
S.RS10-1005 | M10 | 5 | 12 | 9 | 20 | 5.3 | 9 | 280 | 360 | 52 | 3.5 | 0.31 |
S.RS10-1006 | M10 | 6 | 12 | 9 | 20 | 6.4 | 12.6 | 295 | 375 | 64 | 3.5 | 0.35 |
S.RS10-1206 | M12 | 6 | 18 | 12 | 25 | 6.4 | 12.6 | 340 | 445 | 64 | 5.1 | 0.54 |
S.RS10-1208 | M12 | 8 | 18 | 12 | 25 | 8.4 | 16 | 360 | 465 | 80 | 5.1 | 0.60 |
S.RS10-1608 | M16 | 8 | 20 | 16 | 29 | 8.4 | 16 | 435 | 565 | 80 | 8 | 1.08 |
S.RS10-1610 | M16 | 10 | 20 | 16 | 29 | 10.5 | 18 | 445 | 575 | 90 | 8 | 1.11 |
S.RS10-2010 | M20 | 10 | 24 | 19 | 30 | 10.5 | 18 | 490 | 640 | 90 | 13 | 1.72 |
S.RS10-2012 | M20 | 12 | 24 | 19 | 30 | 12.6 | 20 | 505 | 655 | 105 | 13 | 1.80 |
S.RS10-2214 | M22 | 14 | 26 | 22 | 35 | 14.7 | 25 | 625 | 805 | 140 | 17 | 4.52 |
S.RS10-2416 | M24 | 16 | 29 | 25 | 40 | 16.9 | 28 | 730 | 960 | 160 | 20 | 6.62 |
S.RS10-2719 | M27 | 19 | 34 | 28 | 46 | 20 | 34.5 | 835 | 1070 | 200 | 25.5 | 7.51 |
S.RS10-3022 | M30 | 22 | 40 | 32 | 54 | 23.2 | 40.5 | 930 | 1190 | 230 | 31 | 9.48 |
S.RS10-3626 | M36 | 26 | 44 | 36 | 62 | 27.5 | 46 | 1045 | 1315 | 280 | 43 | 13.66 |
