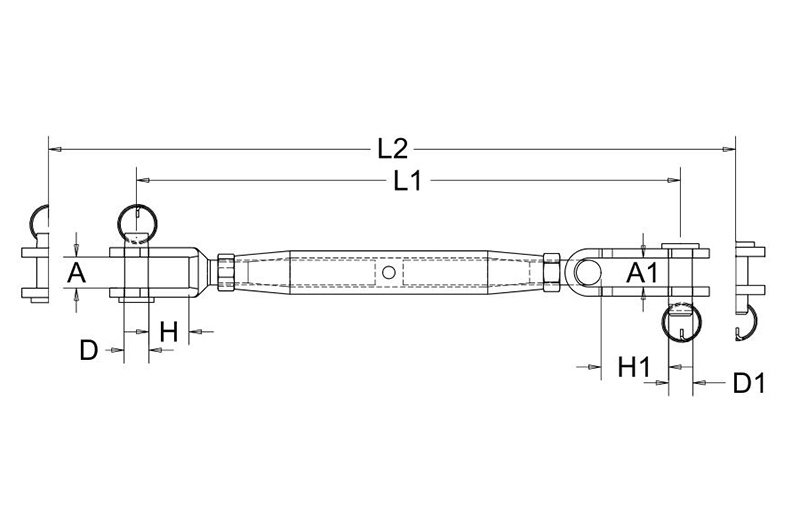

Art No. | SIZE | A | D | H | A1 | D1 | H1 | L1 | L2 | BL | Weight |
mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS11-06 | M6 | 7.5 | 6 | 10 | 7 | 6 | 15 | 160 | 230 | 1.25 | 0.080 |
S.RS11-08 | M8 | 11 | 8 | 11 | 10 | 8 | 20 | 180 | 255 | 2.35 | 0.156 |
S.RS11-10 | M10 | 12 | 9 | 14 | 12 | 9 | 25 | 210 | 300 | 3.50 | 0.280 |
S.RS11-12 | M12 | 14 | 12 | 20 | 13 | 12 | 30 | 265 | 375 | 5.10 | 0.530 |
S.RS11-16 | M16 | 17 | 16 | 26 | 17 | 16 | 40 | 340 | 480 | 8.00 | 1.170 |
S.RS11-20 | M20 | 20 | 19 | 30 | 20 | 19 | 45 | 395 | 535 | 13.00 | 2.030 |
