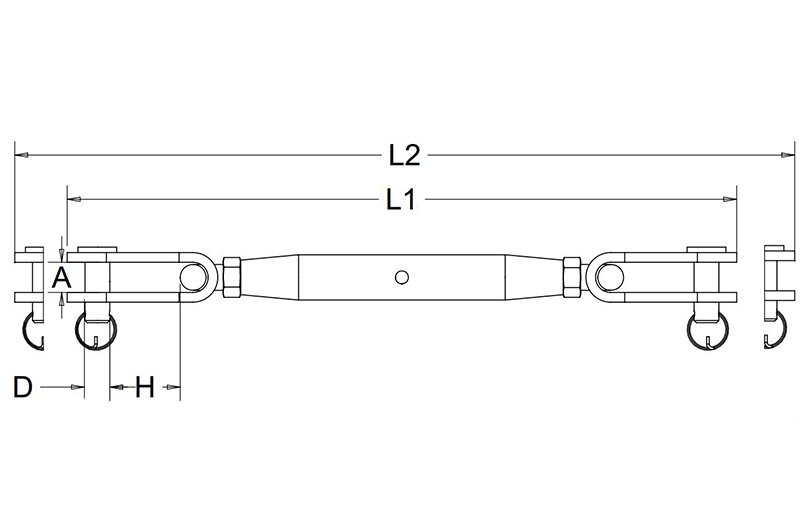

Art No. | SIZE | A | D | H | L1 | L2 | BL | Weight |
mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS07-06 | M6 | 7 | 6 | 15 | 160 | 230 | 1.25 | 0.10 |
S.RS07-08 | M8 | 10 | 8 | 20 | 190 | 265 | 2.35 | 0.18 |
S.RS07-10 | M10 | 12 | 9 | 25 | 230 | 320 | 3.5 | 0.38 |
S.RS07-12 | M12 | 13 | 12 | 30 | 280 | 390 | 5.1 | 0.63 |
S.RS07-16 | M16 | 17 | 16 | 40 | 370 | 510 | 8 | 1.37 |
S.RS07-20 | M20 | 20 | 19 | 45 | 430 | 570 | 13 | 2.23 |
