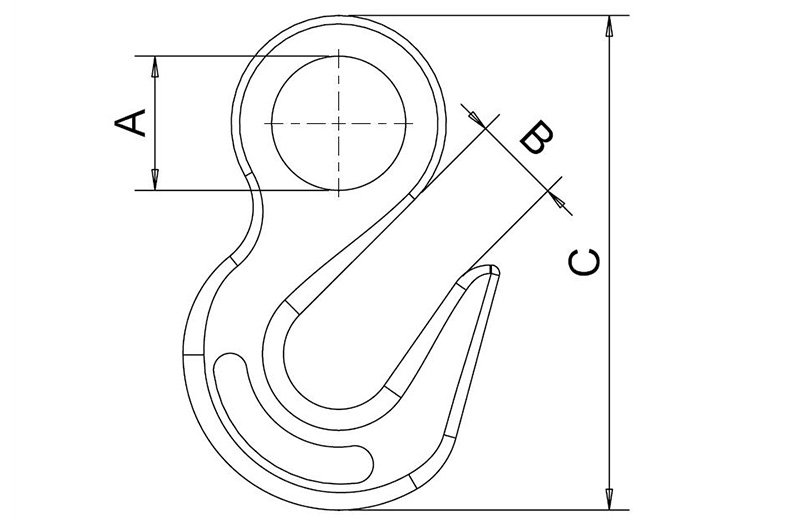

Art No. | SIZE | A | B | C | WLL | Weight |
Pin Dia | Open Length | Total Length | (lbs) | kg/pc | ||
S.HK03-06 | 1/4" | 0.52" | 0.35" | 3.03" | 1250 | 0.127 |
S.HK03-08 | 5/16" | 0.64" | 0.45" | 4.05" | 1800 | 0.230 |
S.HK03-10 | 3/8" | 0.72" | 0.50" | 4.75" | 2500 | 0.345 |
S.HK03-12 | 1/2" | 0.93" | 0.65" | 6.25" | 3600 | 0.730 |
