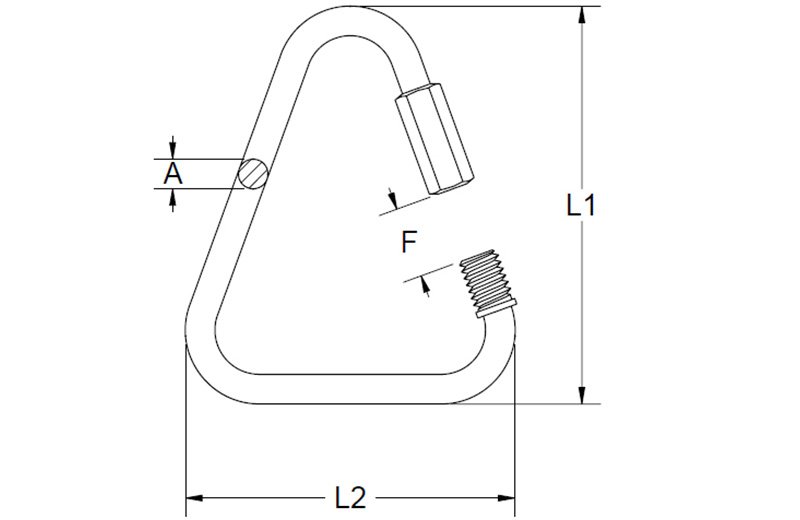

Art No. | SIZE | A | L1 | L2 | F | WLL |
mm | mm | mm | mm | mm | lbs | |
S.QL03-035 | 3.5 | 3.5 | 37 | 31 | 5 | 120 |
S.QL03-05 | 5 | 5 | 47 | 40 | 6 | 450 |
S.QL03-06 | 6 | 6 | 56 | 47 | 7.5 | 600 |
S.QL03-08 | 8 | 8 | 73 | 56 | 10 | 1100 |
S.QL03-10 | 10 | 10 | 87 | 66 | 12 | 1500 |
S.QL03-12 | 12 | 12 | 104 | 75 | 15 | 1650 |
S.QL03-14 | 14 | 14 | 122 | 86 | 19 | 1900 |
