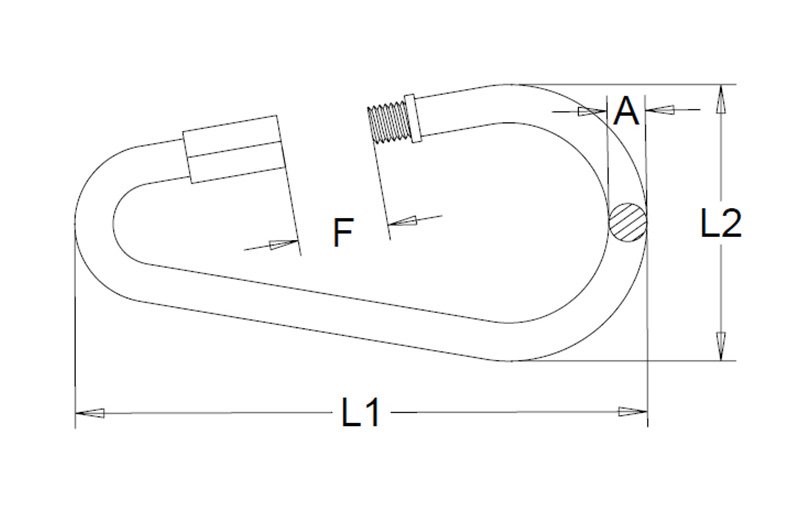

| Art No. | SIZE | A | L1 | L2 | F | WLL |
| mm | mm | mm | mm | mm | lbs | |
| S.QL04-035 | 3.5 | 3.5 | 52 | 27 | 9.5 | 120 |
| S.QL04-04 | 4 | 4 | 60 | 32 | 11 | 350 |
| S.QL04-05 | 5 | 5 | 70 | 37 | 12 | 450 |
| S.QL04-06 | 6 | 6 | 80 | 42.8 | 14 | 600 |
| S.QL04-08 | 8 | 8 | 100 | 50.8 | 17 | 1100 |
| S.QL04-09 | 9 | 9 | 108 | 57 | 19 | 1300 |
| S.QL04-10 | 10 | 10 | 117.5 | 63.5 | 20.5 | 1500 |
| S.QL04-12 | 12 | 12 | 141 | 76 | 23 | 1650 |
