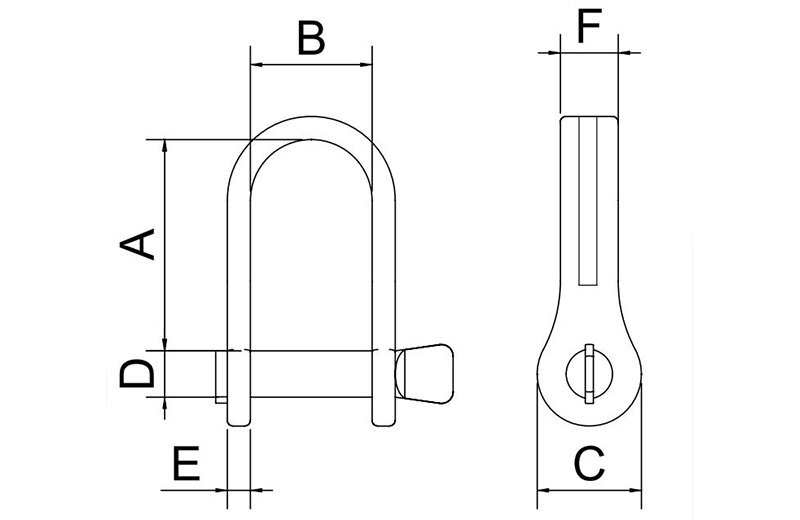

| Art No. | D | A | B | C | E | F | Thickness |
| mm | mm | mm | mm | mm | mm | mm | |
| S.SH29-04 | 4 | 25 | 15 | 12 | 2 | 7.5 | 2 |
| S.SH29-05 | 5 | 35 | 17 | 11 | 2.5 | 6.5 | 2.5 |
| S.SH29-06 | 6 | 40 | 17 | 14.5 | 3 | 7.8 | 3 |
| S.SH29-08 | 8 | 42 | 22 | 18.5 | 4 | 8 | 4 |
Stainless Steel AISI316 or AISI304
| Art No. | D | A | B | C | E | F | Thickness |
| mm | mm | mm | mm | mm | mm | mm | |
| S.SH29-04 | 4 | 25 | 15 | 12 | 2 | 7.5 | 2 |
| S.SH29-05 | 5 | 35 | 17 | 11 | 2.5 | 6.5 | 2.5 |
| S.SH29-06 | 6 | 40 | 17 | 14.5 | 3 | 7.8 | 3 |
| S.SH29-08 | 8 | 42 | 22 | 18.5 | 4 | 8 | 4 |
