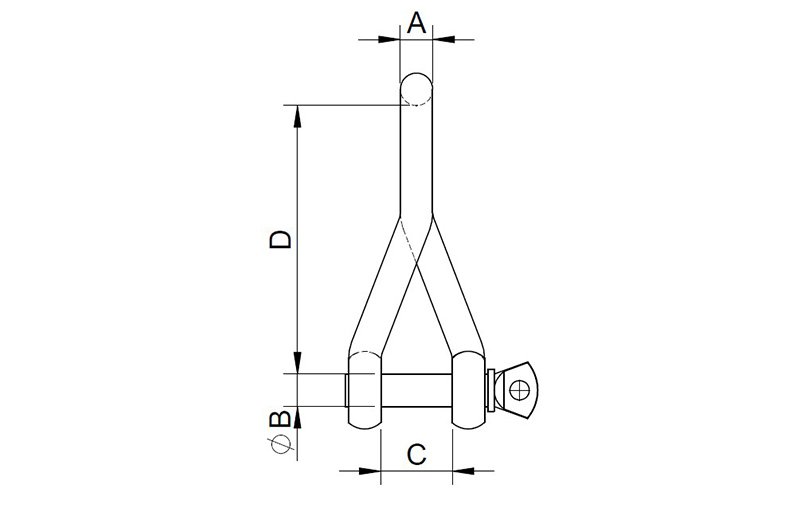

Art No. | SIZE | A | B | C | D | WLL | Weight |
mm | mm | mm | mm | mm | tons | kg/pc | |
S.SH10-04 | 4 | 4 | 4 | 8 | 22 | 0.09 | 0.010 |
S.SH10-05 | 5 | 5 | 5 | 10 | 27.5 | 0.10 | 0.020 |
S.SH10-06 | 6 | 6 | 6 | 12 | 33 | 0.15 | 0.035 |
S.SH10-08 | 8 | 8 | 8 | 16 | 44 | 0.20 | 0.080 |
S.SH10-10 | 10 | 10 | 10 | 20 | 55 | 0.50 | 0.150 |
S.SH10-12 | 12 | 12 | 12 | 24 | 66 | 0.60 | 0.280 |
