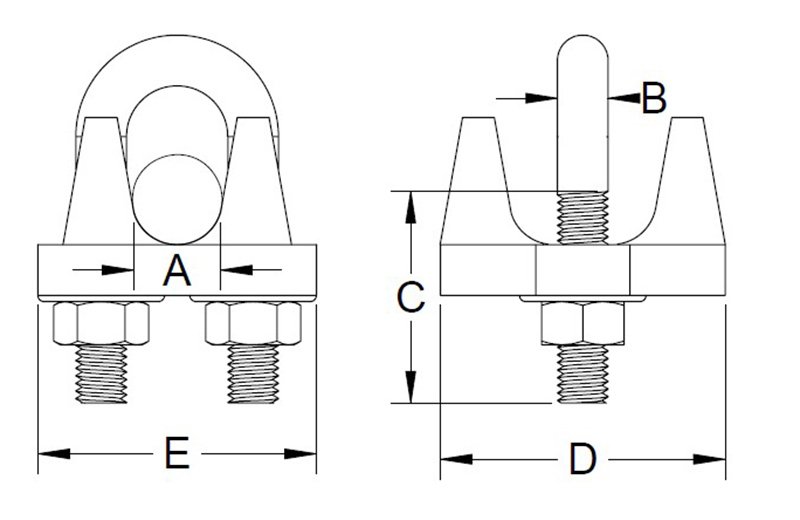

Art No. | SIZE | A | B | C | D | E | Weight |
mm | mm | mm | mm | mm | mm | kg/pc | |
S.CL02-02 | 2 | 2 | 3 | 10 | 14 | 14 | 0.008 |
S.CL02-03 | 3 | 3 | 4 | 12 | 16 | 17 | 0.015 |
S.CL02-04 | 4 | 4 | 4 | 13 | 18 | 19 | 0.029 |
S.CL02-05 | 5 | 5 | 5 | 15 | 20 | 24 | 0.031 |
S.CL02-06 | 6 | 6 | 6 | 18 | 22 | 28 | 0.040 |
S.CL02-08 | 8 | 8 | 8 | 20 | 28 | 34 | 0.077 |
S.CL02-10 | 10 | 10 | 10 | 28 | 35 | 45 | 0.170 |
S.CL02-12 | 12 | 12 | 12 | 35 | 39 | 51 | 0.265 |
S.CL02-14 | 14 | 14 | 12 | 40 | 45 | 53 | 0.310 |
S.CL02-16 | 16 | 16 | 14 | 45 | 48 | 60 | 0.500 |
S.CL02-18 | 18 | 18 | 14 | 50 | 53 | 62 | 0.580 |
