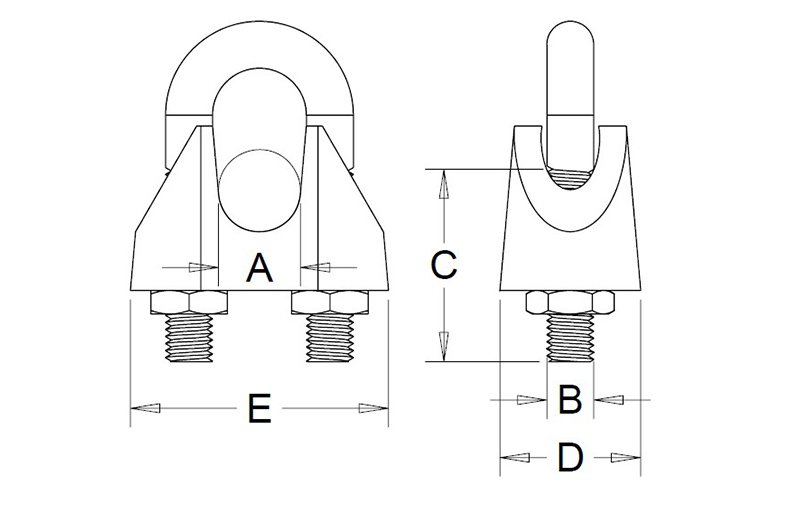

Art No. | SIZE | A | B | C | D | E | Weight |
mm | mm | mm | mm | mm | mm | kg/pc | |
S.CL01-02 | 2 | 2 | 3 | 10 | 9 | 16 | 0.007 |
S.CL01-03 | 3 | 3 | 4 | 12 | 10 | 21 | 0.012 |
S.CL01-04 | 4 | 4 | 4 | 12 | 10 | 22 | 0.014 |
S.CL01-05 | 5 | 5 | 5 | 13 | 11 | 23 | 0.015 |
S.CL01-06 | 6 | 6 | 5 | 15 | 12 | 26 | 0.021 |
S.CL01-08 | 8 | 8 | 6 | 19 | 14 | 30 | 0.041 |
S.CL01-10 | 10 | 10 | 8 | 22 | 18 | 34 | 0.068 |
S.CL01-11 | 11 | 11 | 8 | 22 | 19 | 36 | 0.072 |
S.CL01-13 | 13 | 13 | 10 | 30 | 23 | 40 | 0.130 |
S.CL01-14 | 14 | 14 | 10 | 30 | 23 | 44 | 0.135 |
S.CL01-16 | 16 | 16 | 12 | 33 | 26 | 50 | 0.210 |
S.CL01-19 | 19 | 19 | 12 | 38 | 29 | 54 | 0.280 |
S.CL01-22 | 22 | 22 | 14 | 44 | 33 | 61 | 0.400 |
S.CL01-25 | 25 | 25 | 14 | 45 | 35 | 65 | 0.440 |
