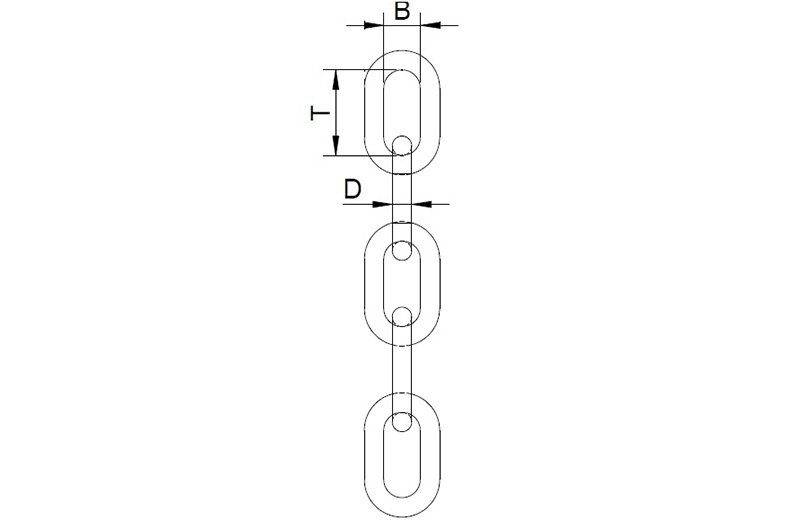

| Art No. | Chain Size | Link Dimension | Length Per 100kg | |||
| Dia | Inside Length | Outside Width | B.F. | H.D.G | ||
| mm | mm | mm | mm | m | m | |
| S.CH0901 | 3.0 | 3.15 | 15.70 | 13.10 | 511.00 | 498.00 |
| S.CH0902 | 4.0 | 4.00 | 18.60 | 16.00 | 320.00 | 305.00 |
| S.CH0903 | 5.0 | 5.00 | 22.00 | 19.40 | 203.00 | 193.00 |
| S.CH0904 | 6.0 | 6.30 | 26.10 | 23.50 | 129.00 | 120.00 |
| S.CH0905 | 8.0 | 8.00 | 32.20 | 29.50 | 77.80 | 74.10 |
| S.CH0906 | 10.0 | 10.00 | 39.10 | 36.20 | 48.50 | 47.10 |
| S.CH0907 | 12.0 | 12.00 | 46.00 | 44.00 | 34.00 | 33.30 |
| S.CH0908 | 13.0 | 13.00 | 49.10 | 46.10 | 29.70 | 27.70 |
| S.CH0909 | 16.0 | 16.00 | 59.60 | 56.50 | 20.20 | 18.20 |
| S.CH0910 | 20.0 | 20.00 | 73.30 | 70.00 | 12.30 | 11.60 |
| S.CH0911 | 24.0 | 24.00 | 87.00 | 83.60 | 8.50 | 8.04 |
