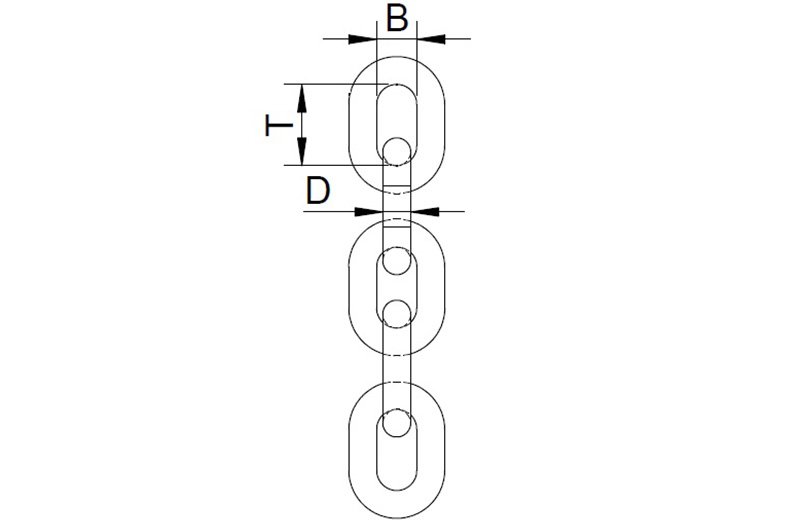

| Art No. | Chain Size | Link Dimension | Length Per 100kg | |||
| Dia | Inside Length | Outside Width | B.F. | H.D.G | ||
| mm | mm | mm | mm | m | m | |
| S.CH0801 | 5.0 | 5.00 | 14.60 | 17.20 | 174.00 | 167.00 |
| S.CH0802 | 6.0 | 6.30 | 18.90 | 21.50 | 114.00 | 108.00 |
| S.CH0803 | 8.0 | 8.00 | 24.00 | 27.50 | 70.50 | 67.00 |
| S.CH0804 | 10.0 | 10.00 | 29.50 | 33.50 | 45.20 | 42.90 |
| S.CH0805 | 12.0 | 12.50 | 37.50 | 40.60 | 29.50 | 28.00 |
| S.CH0806 | 13.0 | 13.00 | 38.80 | 44.60 | 26.90 | 26.30 |
| S.CH0807 | 16.0 | 16.00 | 47.00 | 54.00 | 17.60 | 16.70 |
| S.CH0808 | 20.0 | 20.00 | 59.20 | 68.50 | 11.30 | 11.10 |
| S.CH0809 | 22.0 | 22.00 | 64.90 | 77.00 | 9.50 | 9.20 |
| S.CH0810 | 24.0 | 24.00 | 71.00 | 82.20 | 7.80 | 7.60 |
