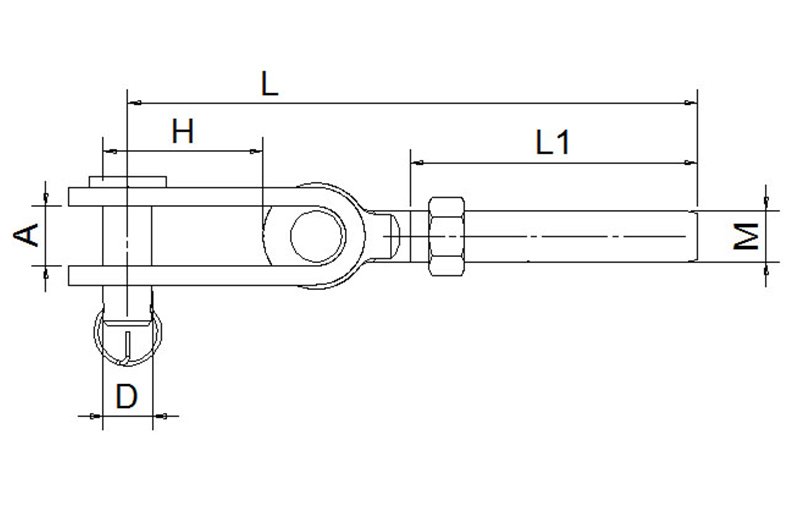

Art No. | SIZE | A | D | H | L | L1 | BL | Weight |
mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS33-06 | M6 | 8 | 6 | 13 | 88 | 48 | 1.3 | 0.050 |
S.RS33-08 | M8 | 10 | 8 | 16 | 105 | 56 | 2.35 | 0.080 |
S.RS33-10 | M10 | 12 | 9 | 20 | 128 | 67 | 3.5 | 0.150 |
S.RS33-12 | M12 | 18 | 12 | 25 | 154 | 81 | 5.4 | 0.305 |
S.RS33-16 | M16 | 17 | 16 | 29 | 199 | 103 | 8 | 0.630 |
S.RS33-20 | M20 | 20 | 19 | 30 | 230 | 115 | 13 | 1.110 |
