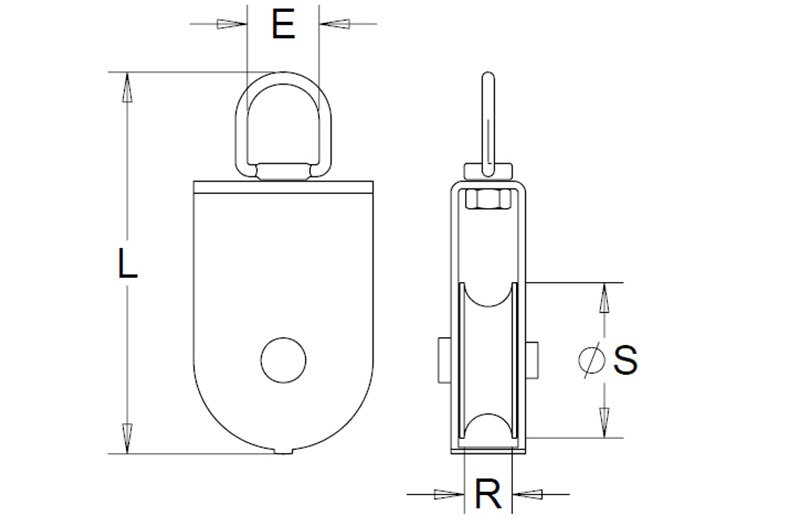

Art No. | SIZE | SHEAVE | ROPE | EYE | LENGTH | WLL | Weight |
mm | mm | mm | mm | mm | tons | kg/pc | |
S.BL03-25 | 25 | 25 | 6 | 15 | 83 | 0.15 | 0.250 |
S.BL03-32 | 32 | 32 | 8 | 16 | 97 | 0.25 | 0.300 |
S.BL03-50 | 50 | 50 | 10 | 20 | 127 | 0.30 | 0.45 |
S.BL03-75 | 75 | 75 | 12 | 22 | 170 | 0.50 | 1.00 |
S.BL03-100 | 100 | 100 | 16 | 24 | 205 | 0.80 | 1.73 |
