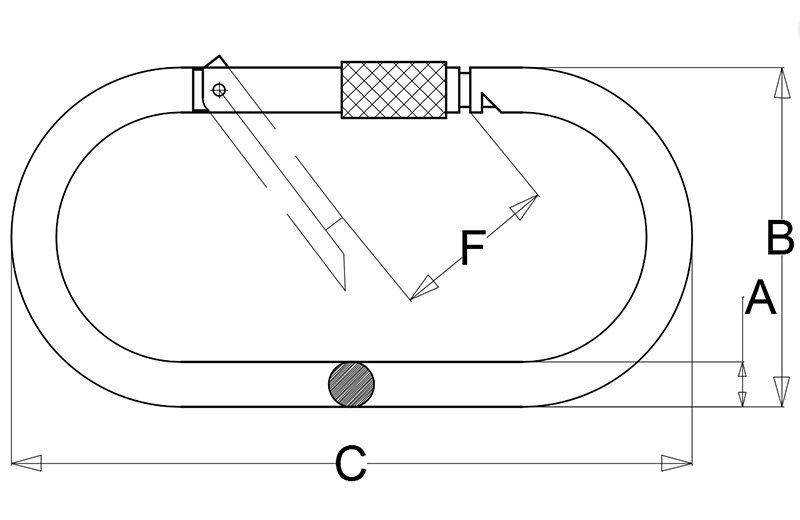

| Art No. | SIZE | A | B | C | F | WLL |
| mm | mm | mm | mm | mm | lbs | |
| S.SK07-05 | 5x50 | 5 | 25 | 50 | 9 | 100 |
| S.SK07-06 | 6x60 | 6 | 30 | 60 | 11 | 140 |
| S.SK07-08 | 8x80 | 8 | 40 | 80 | 13 | 250 |
| S.SK07-10 | 10x100 | 10 | 50 | 100 | 16 | 400 |
| S.SK07-11 | 11x120 | 11 | 58 | 120 | 21 | 500 |

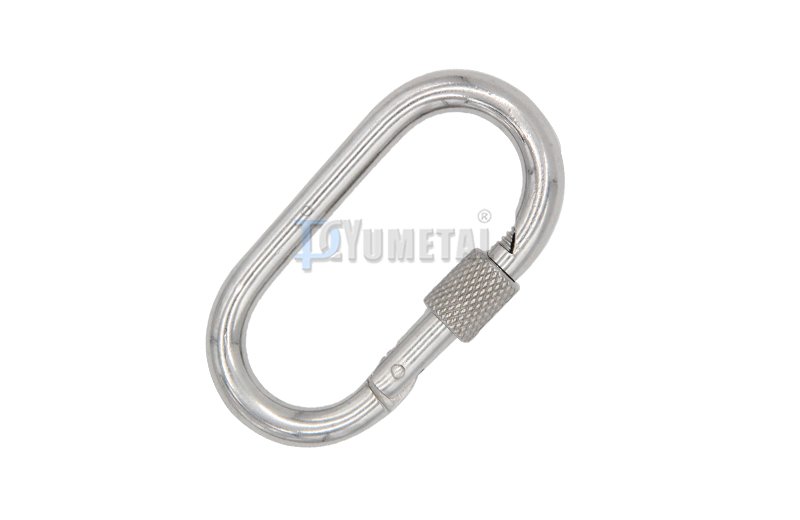

Stainless Steel AISI316 or AISI304
| Art No. | SIZE | A | B | C | F | WLL |
| mm | mm | mm | mm | mm | lbs | |
| S.SK07-05 | 5x50 | 5 | 25 | 50 | 9 | 100 |
| S.SK07-06 | 6x60 | 6 | 30 | 60 | 11 | 140 |
| S.SK07-08 | 8x80 | 8 | 40 | 80 | 13 | 250 |
| S.SK07-10 | 10x100 | 10 | 50 | 100 | 16 | 400 |
| S.SK07-11 | 11x120 | 11 | 58 | 120 | 21 | 500 |
