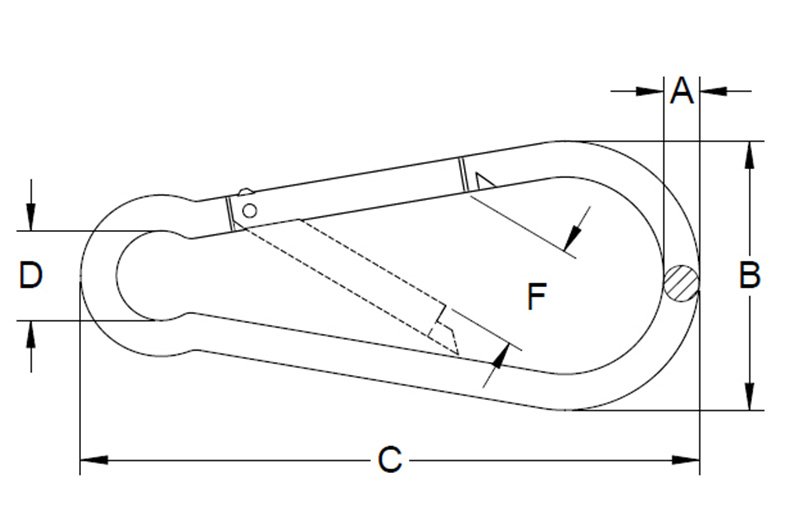

Art No. | SIZE | A | B | C | D | F | WLL |
mm | mm | mm | mm | mm | mm | lbs | |
S.SK01-04 | 4x40 | 4 | 20 | 40 | 7 | 7 | 80 |
S.SK01-05 | 5x50 | 5 | 25 | 50 | 8 | 7 | 100 |
S.SK01-06 | 6x60 | 6 | 30 | 60 | 9 | 8 | 140 |
S.SK01-07 | 7x70 | 7 | 35 | 70 | 10 | 8 | 200 |
S.SK01-08 | 8x80 | 8 | 40 | 80 | 12 | 9 | 250 |
S.SK01-09 | 9x90 | 9 | 45 | 90 | 12 | 10 | 280 |
S.SK01-10 | 10x100 | 10 | 50 | 100 | 15 | 11 | 400 |
S.SK01-11 | 11x120 | 11 | 57 | 120 | 18 | 16 | 500 |
S.SK01-12 | 12x140 | 12 | 67 | 140 | 20 | 19 | 600 |
S.SK01-13 | 13x160 | 13 | 74 | 160 | 22 | 25 | 700 |
S.SK01-14 | 14x180 | 14 | 86 | 180 | 22 | 35 | 900 |
S.SK01-15 | 15x200 | 15 | 90 | 200 | 26 | 39 | 1200 |
