S.CL07 Wire Rope Clip High Body Type

Products

S.CL07
SCL07

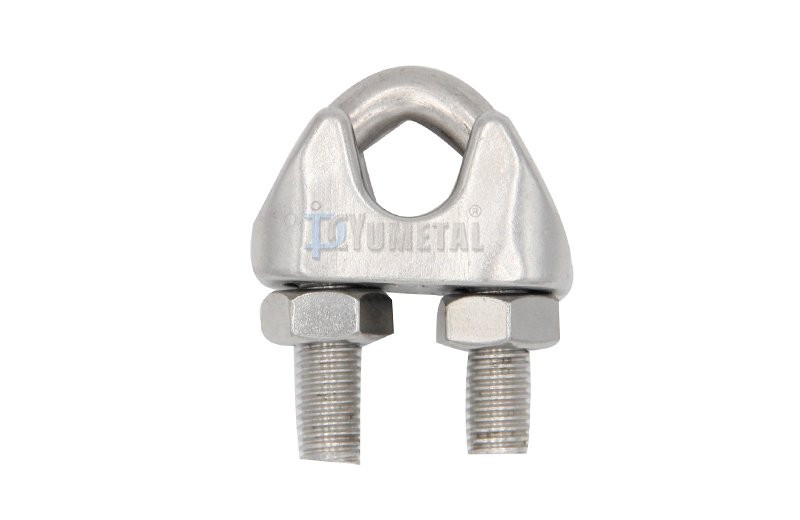

S.CL07 Wire Rope Clip High Body Type

Stainless Steel AISI316 or AISI304, Precision Cast

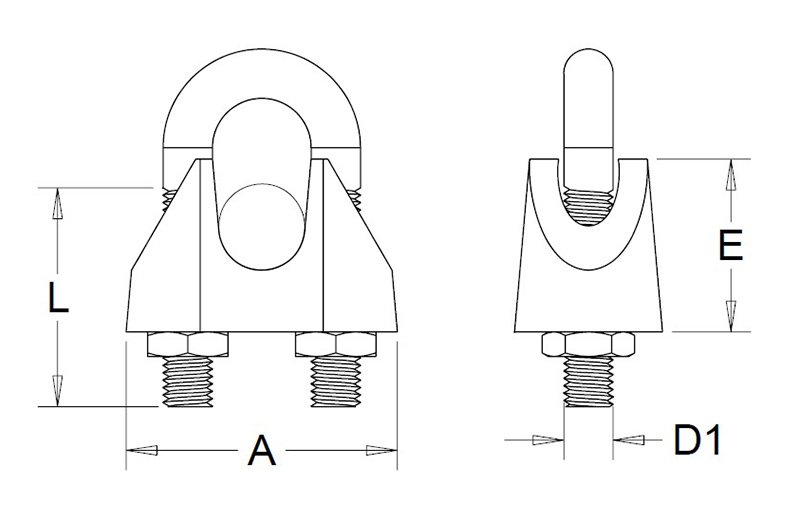

Technical parameters

Art No.SIZEWIRED1ALEWeight
mmmmmmmmmmmmkg/pc
S.CL07-0222M31611 10 0.007
S.CL07-0333M31811 11 0.014
S.CL07-0444M42112 13 0.017
S.CL07-0555M52515 15 0.028
S.CL07-0666M62818 17 0.040
S.CL07-0888M63118 20 0.060
S.CL07-101010M83822 23 0.095
S.CL07-131313M104730 25.5 0.175
S.CL07-161616M105434 32 0.240
S.CL07-191919M126236 38 0.380
S.CL07-222222M126440 43.5 0.440
