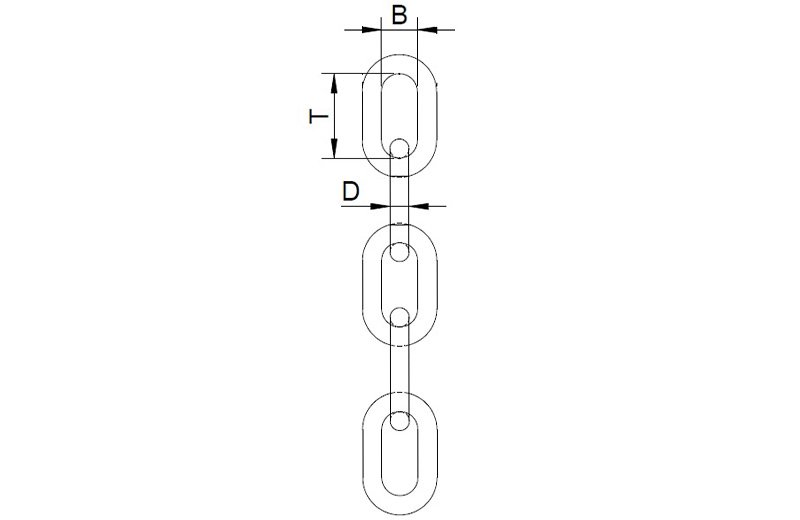

| Art No. | Link Specification | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||
| inch | mm | mm | mm | B.F. | H.D.G | |
| S.CH1501 | 1/8" | 3.20 | 20.00 | 12.00 | 10.80 | 11.00 |
| S.CH1502 | 5/32" | 4.00 | 23.00 | 15.00 | 17.40 | 18.00 |
| S.CH1503 | 3/16" | 4.70 | 25.00 | 18.00 | 24.40 | 25.00 |
| S.CH1504 | 7/32" | 5.50 | 26.00 | 19.00 | 34.00 | 35.00 |
| S.CH1505 | 1/4" | 6.35 | 26.00 | 23.00 | 48.80 | 50.00 |
| S.CH1506 | 5/16" | 7.94 | 32.00 | 29.00 | 76.00 | 78.00 |
| S.CH1507 | 3/8" | 9.50 | 35.00 | 35.00 | 111.00 | 114.00 |
| S.CH1508 | 7/16" | 11.11 | 38.00 | 38.00 | 154.00 | 158.00 |
| S.CH1509 | 1/2" | 12.70 | 50.00 | 45.50 | 194.00 | 200.00 |
| S.CH1510 | 5/8" | 15.80 | 60.00 | 56.70 | 303.00 | 312.00 |
| S.CH1511 | 3/4" | 19.00 | 76.00 | 69.00 | 432.00 | 445.00 |
| S.CH1512 | 7/8" | 22.20 | 90.00 | 80.00 | 586.00 | 603.00 |
| S.CH1513 | 1" | 25.40 | 105.00 | 95.00 | 770.00 | 792.00 |
