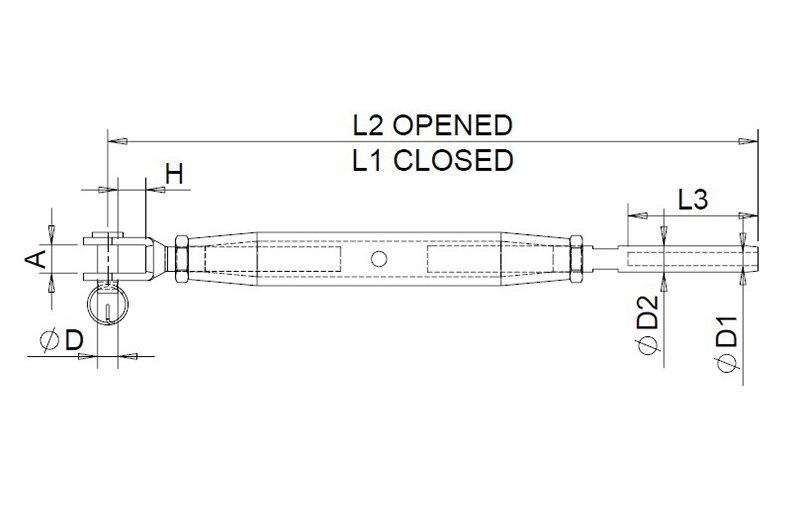

Art No. | SIZE | WIRE DIA. | A | D | H | D1 | D2 | L1 | L2 | L3 | BL | Weight |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
S.RS03-04 | M4 | 2 | 5.5 | 4 | 8 | 2.2 | 4.8 | 125 | 150 | 24 | 0.50 | 0.033 |
S.RS03-05 | M5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 155 | 215 | 32 | 0.80 | 0.050 |
S.RS03-06 | M6 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 175 | 245 | 39 | 1.25 | 0.080 |
S.RS03-08 | M8 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 200 | 275 | 45 | 2.35 | 0.140 |
S.RS03-10 | M10 | 5 | 12 | 9 | 14 | 5.3 | 9 | 230 | 320 | 52 | 3.50 | 0.255 |
S.RS03-12 | M12 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 285 | 400 | 64 | 5.10 | 0.490 |
S.RS03-14 | M14 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 315 | 435 | 70 | 5.90 | 0.580 |
S.RS03-16 | M16 | 8 | 17 | 16 | 26 | 8.4 | 16 | 360 | 500 | 80 | 8.00 | 1.080 |
S.RS03-20 | M20 | 10 | 20 | 19 | 30 | 10.5 | 18 | 410 | 560 | 90 | 13.00 | 1.720 |
S.RS03-22 | M22 | 14 | 30 | 22 | 46.5 | 14.7 | 25 | 545 | 715 | 140 | 17.00 | 4.520 |
S.RS03-24 | M24 | 16 | 30 | 25 | 49 | 16.9 | 28 | 625 | 855 | 160 | 20.00 | 6.620 |
S.RS03-27 | M27 | 19 | 34 | 28 | 54 | 20 | 64.5 | 735 | 970 | 200 | 25.50 | 7.520 |
S.RS03-30 | M30 | 22 | 40 | 32 | 62 | 23.2 | 40.5 | 825 | 1080 | 230 | 31.00 | 9.480 |
S.RS03-36 | M36 | 26 | 44 | 36 | 70 | 27.5 | 46 | 930 | 1200 | 280 | 43.00 | 13.660 |
