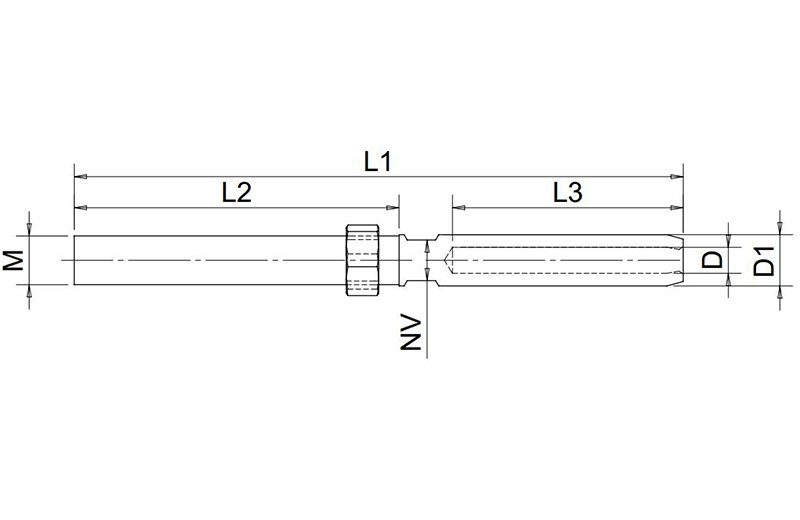

| Art No. | SIZE | WIRE | D | D1 | L1 | L2 | L3 | NV | BL | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | kgs | kg/pc | |
| S.RS20-04 | M4 | 2 | 2.2 | 4.8 | 73 | 38 | 24 | 3 | 0.05 | 0.006 |
| S.RS20-05 | M5 | 2.5 | 2.7 | 5.5 | 86 | 40 | 32 | 4 | 0.8 | 0.013 |
| S.RS20-06 | M6 | 3 | 3.3 | 6.35 | 90 | 48 | 39 | 5 | 1.25 | 0.020 |
| S.RS20-08 | M8 | 4 | 4.3 | 7.5 | 117 | 57 | 45 | 6 | 2.35 | 0.038 |
| S.RS20-10 | M10 | 5 | 5.3 | 9 | 130 | 63 | 52 | 7 | 3.5 | 0.065 |
| S.RS20-12 | M12 | 6 | 6.4 | 12.6 | 162 | 80 | 64 | 10 | 5.1 | 0.135 |
| S.RS20-14 | M14 | 7 | 7.4 | 14.2 | 10 | 90 | 70 | 12 | 5.9 | 0.20 |
| S.RS20-16 | M16 | 8 | 8.7 | 16 | 200 | 100 | 80 | 14 | 8 | 0.28 |
| S.RS20-20 | M20 | 10 | 10.5 | 18 | 230 | 119 | 90 | 15 | 13 | 0.46 |
| S.RS20-22 | M22 | 14 | 14.7 | 25 | 308 | 140 | 140 | 23 | 17 | 0.87 |
| S.RS20-24 | M24 | 16 | 16.9 | 28 | 363 | 170 | 160 | 25 | 23 | 1.25 |
| S.RS20-27 | M27 | 19 | 20 | 34.5 | 425 | 180 | 200 | 30 | 25.5 | 2.09 |
| S.RS20-30 | M30 | 22 | 23.2 | 40.5 | 480 | 200 | 230 | 36 | 31 | 3.14 |
| S.RS20-36 | M36 | 26 | 27.5 | 46 | 550 | 220 | 280 | 41 | 43 | 4.70 |
