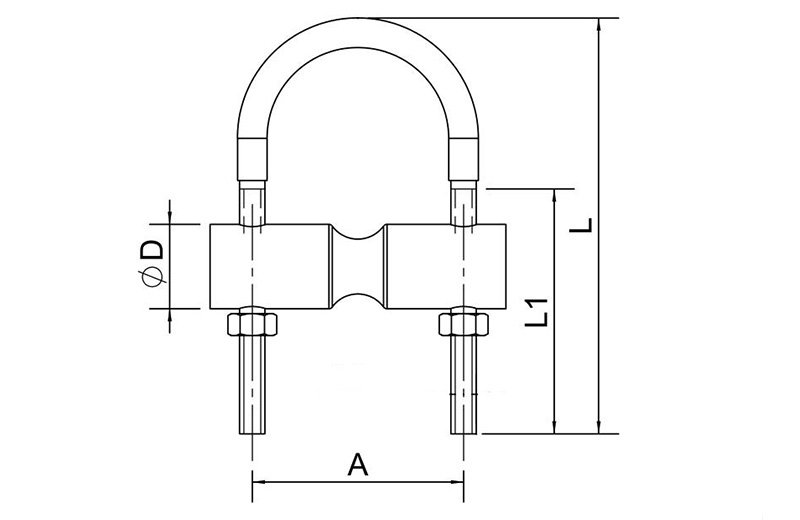

| Art No. | SIZE | A | D | L | L1 | BL | Weight |
| mm | mm | mm | mm | mm | tons | kg/pc | |
| S.UB07-08150 | M8 | 48 | 22 | 150 | 105 | 1.75 | 0.20 |
| S.UB07-10200 | M10 | 60 | 30 | 200 | 140 | 3.5 | 0.28 |
Double Nuts.Stainless Steel AISI316 or AISI304
| Art No. | SIZE | A | D | L | L1 | BL | Weight |
| mm | mm | mm | mm | mm | tons | kg/pc | |
| S.UB07-08150 | M8 | 48 | 22 | 150 | 105 | 1.75 | 0.20 |
| S.UB07-10200 | M10 | 60 | 30 | 200 | 140 | 3.5 | 0.28 |
