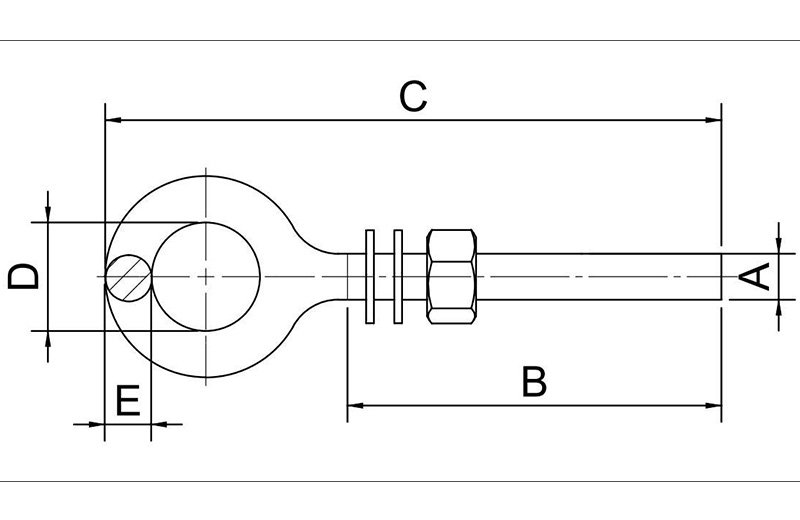

Art No. | SIZE | A | B | C | D | E |
mm | mm | mm | mm | mm | mm | |
S.EB05-0560 | 5X60 | 5 | 40 | 60 | 11 | 4.4 |
S.EB05-0580 | 5X80 | 5 | 60 | 80 | 11 | 4.4 |
S.EB05-05100 | 5X100 | 5 | 80 | 100 | 11 | 4.4 |
S.EB05-0660 | 6X60 | 6 | 36.4 | 60 | 13 | 5.3 |
S.EB05-0680 | 6X80 | 6 | 56.4 | 80 | 13 | 5.3 |
S.EB05-0690 | 6X90 | 6 | 66.4 | 90 | 13 | 5.3 |
S.EB05-06100 | 6X100 | 6 | 76.4 | 100 | 13 | 5.3 |
S.EB05-0860 | 8X60 | 8 | 29 | 60 | 17 | 7.1 |
S.EB05-0880 | 8X80 | 8 | 49 | 80 | 17 | 7.1 |
S.EB05-08100 | 8X100 | 8 | 69 | 100 | 17 | 7.1 |
S.EB05-08100 | 8X110 | 8 | 79 | 110 | 17 | 7.1 |
S.EB05-08130 | 8X130 | 8 | 99 | 130 | 17 | 7.1 |
S.EB05-1080 | 10X80 | 10 | 41 | 80 | 21 | 8.9 |
S.EB05-1090 | 10X90 | 10 | 51 | 90 | 21 | 8.9 |
S.EB05-10100 | 10X100 | 10 | 61 | 100 | 21 | 8.9 |
S.EB05-10110 | 10X110 | 10 | 71 | 110 | 21 | 8.9 |
S.EB05-10120 | 10X120 | 10 | 81 | 120 | 21 | 8.9 |
S.EB05-10130 | 10X130 | 10 | 91 | 130 | 21 | 8.9 |
S.EB05-10150 | 10X150 | 10 | 111 | 150 | 21 | 8.9 |
S.EB05-12150 | 12X150 | 12 | 104 | 150 | 25 | 10.7 |
S.EB05-12165 | 12X165 | 12 | 119 | 165 | 25 | 10.7 |
S.EB05-12185 | 12X185 | 12 | 139 | 185 | 25 | 10.7 |
S.EB05-16150 | 16X150 | 16 | 88 | 150 | 33 | 14.7 |
S.EB05-16200 | 16X200 | 16 | 138 | 200 | 33 | 14.7 |
S.EB05-20200 | 20X200 | 20 | 123 | 200 | 41 | 18.3 |
