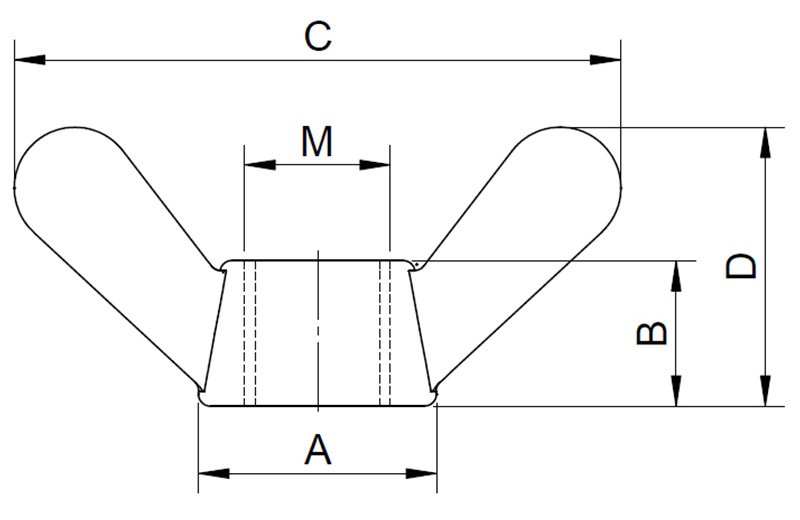

| Art No. | SIZE | A | B | C | D | M |
| mm | mm | mm | mm | mm | mm | |
| S.EB20-08 | M8 | 13 | 9.5 | 50 | 24 | M8 |
| S.EB20-10 | M10 | 19.5 | 12 | 62 | 30 | M10 |
| S.EB20-12 | M12 | 22.5 | 14 | 72 | 35 | M12 |
| S.EB20-16 | M16 | 28 | 16 | 86.5 | 40 | M16 |
| S.EB20-20 | M20 | 35.5 | 20 | 108 | 50 | M20 |
| S.EB20-22 | M22 | 40 | 22 | 119.5 | 55 | M22 |

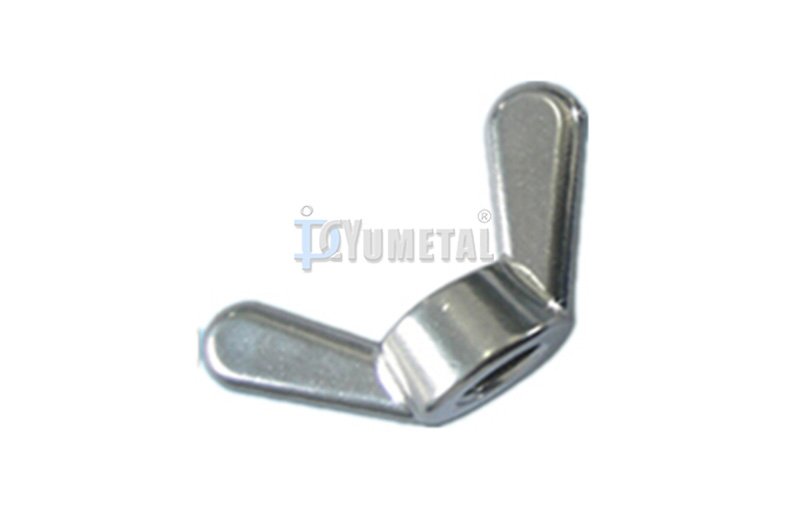

Stainless Steel AISI316 or AISI304
| Art No. | SIZE | A | B | C | D | M |
| mm | mm | mm | mm | mm | mm | |
| S.EB20-08 | M8 | 13 | 9.5 | 50 | 24 | M8 |
| S.EB20-10 | M10 | 19.5 | 12 | 62 | 30 | M10 |
| S.EB20-12 | M12 | 22.5 | 14 | 72 | 35 | M12 |
| S.EB20-16 | M16 | 28 | 16 | 86.5 | 40 | M16 |
| S.EB20-20 | M20 | 35.5 | 20 | 108 | 50 | M20 |
| S.EB20-22 | M22 | 40 | 22 | 119.5 | 55 | M22 |
