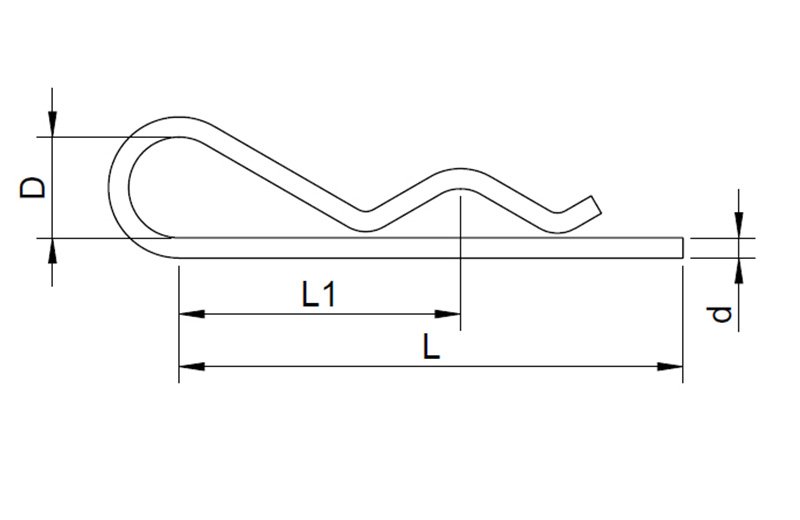

| Art No. | SIZE | d | L | L1 | D |
| mm | mm | mm | mm | mm | |
| S.RG09-02 | 2 | 2 | 50 | 25 | 10 |
| S.RG09-03 | 3 | 3 | 60 | 28 | 18 |
| S.RG09-04 | 4 | 4 | 60 | 30 | 20 |
| S.RG09-05 | 5 | 5 | 85 | 40 | 24 |
| S.RG09-06 | 6 | 6 | 105 | 50 | 30 |
| S.RG09-07 | 7 | 7 | 105 | 50 | 30 |
| S.RG09-08 | 8 | 8 | 110 | 55 | 28 |

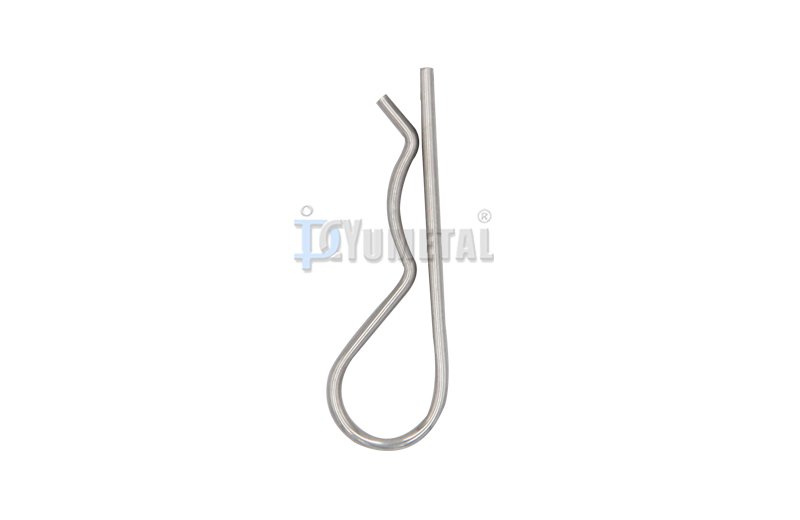

Stainless Steel AISI316 or AISI304
| Art No. | SIZE | d | L | L1 | D |
| mm | mm | mm | mm | mm | |
| S.RG09-02 | 2 | 2 | 50 | 25 | 10 |
| S.RG09-03 | 3 | 3 | 60 | 28 | 18 |
| S.RG09-04 | 4 | 4 | 60 | 30 | 20 |
| S.RG09-05 | 5 | 5 | 85 | 40 | 24 |
| S.RG09-06 | 6 | 6 | 105 | 50 | 30 |
| S.RG09-07 | 7 | 7 | 105 | 50 | 30 |
| S.RG09-08 | 8 | 8 | 110 | 55 | 28 |
