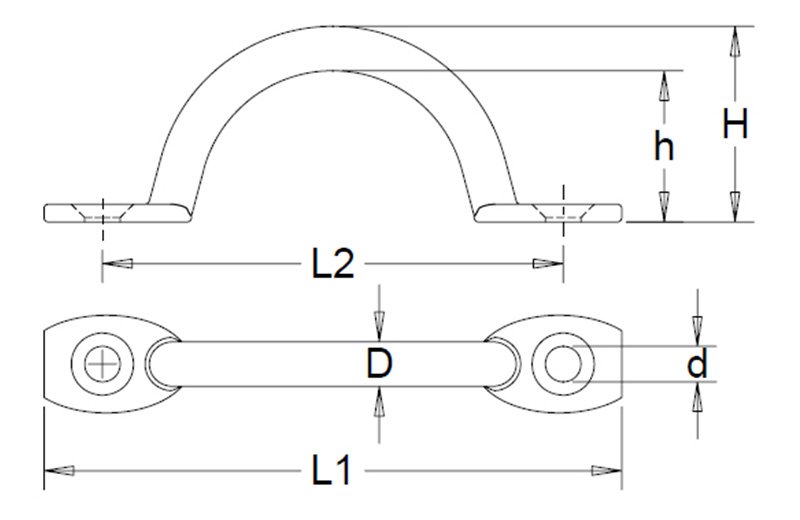

| Art No. | D | L1 | L2 | H | h | d |
| mm | mm | mm | mm | mm | mm | |
| S.WS1601-04 | 4 | 45 | 35 | 16 | 12 | 4 |
| S.WS1601-05 | 5 | 50 | 42 | 17 | 13 | 4 |
| S.WS1601-06 | 6 | 60 | 47 | 22 | 16 | 5 |
| S.WS1601-08 | 8 | 63 | 49 | 25 | 17 | 6 |
| S.WS1601-10 | 10 | 80 | 63 | 32 | 22 | 6.5 |

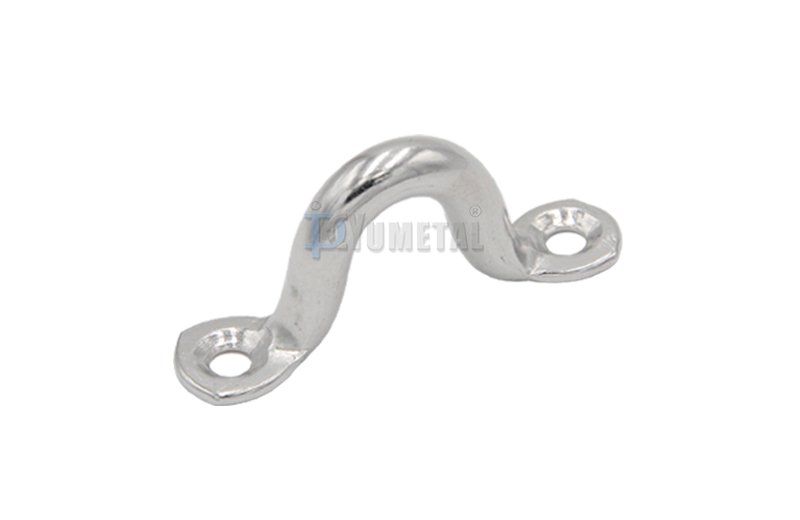

Stainless Steel AISI316 or AISI304
| Art No. | D | L1 | L2 | H | h | d |
| mm | mm | mm | mm | mm | mm | |
| S.WS1601-04 | 4 | 45 | 35 | 16 | 12 | 4 |
| S.WS1601-05 | 5 | 50 | 42 | 17 | 13 | 4 |
| S.WS1601-06 | 6 | 60 | 47 | 22 | 16 | 5 |
| S.WS1601-08 | 8 | 63 | 49 | 25 | 17 | 6 |
| S.WS1601-10 | 10 | 80 | 63 | 32 | 22 | 6.5 |
