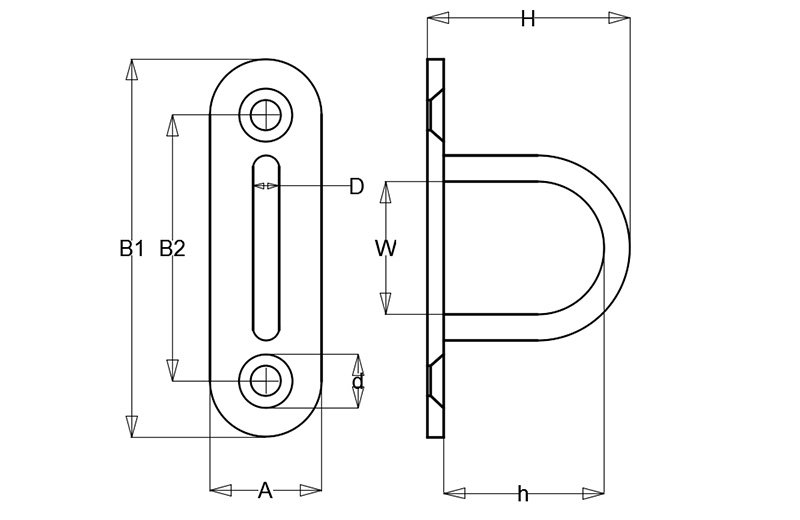

ART. NO | D | A | B1 | B2 | H | h | W | d |
mm | mm | mm | mm | mm | mm | mm | mm | |
S.PL03-05 | 5 | 15 | 45 | 35.5 | 20 | 12 | 14 | 4.2 |
S.PL03-06 | 6 | 20 | 60 | 46 | 25 | 17 | 18 | 5.2 |
S.PL03-08 | 8 | 26 | 80 | 60 | 32 | 21 | 20 | 5.2 |
S.PL03-09 | 9 | 30 | 100 | 73 | 38 | 26 | 22 | 6.5 |
Stainless Steel AISI316 & AISI304
ART. NO | D | A | B1 | B2 | H | h | W | d |
mm | mm | mm | mm | mm | mm | mm | mm | |
S.PL03-05 | 5 | 15 | 45 | 35.5 | 20 | 12 | 14 | 4.2 |
S.PL03-06 | 6 | 20 | 60 | 46 | 25 | 17 | 18 | 5.2 |
S.PL03-08 | 8 | 26 | 80 | 60 | 32 | 21 | 20 | 5.2 |
S.PL03-09 | 9 | 30 | 100 | 73 | 38 | 26 | 22 | 6.5 |
